jsTree with AutoComplete Box

If you haven’t read the introductory post on jsTree, I would recommend reading the Example of simple jsTree with static JSON data.

For details on how to enable context menu, please have a look at the jsTree with custom context menu.

There is a very little change to make the jsTree work with context menu feature to enable autocomplete box. jsTree has multiple plugins to enable different features. In this case, we will use “contextmenu” plugin to enable custom menu feature.

Then we’ll use JQuery UI autocomplete feature when editing a jsTree node. Important thing is hook keydown event from edit box that renders during edit.
Once custom context menu is added as a plugin as per above link, you will get the below menu.

jsTree With Context Menu

For getting the default menu, please see jsTree with Context Menu.

Now let’s look into, how we can populate an autocomplete box while editing a node.

My example of the simple jsTree with autocomplete box is below. I have highlighted the important piece of information that is tricky.

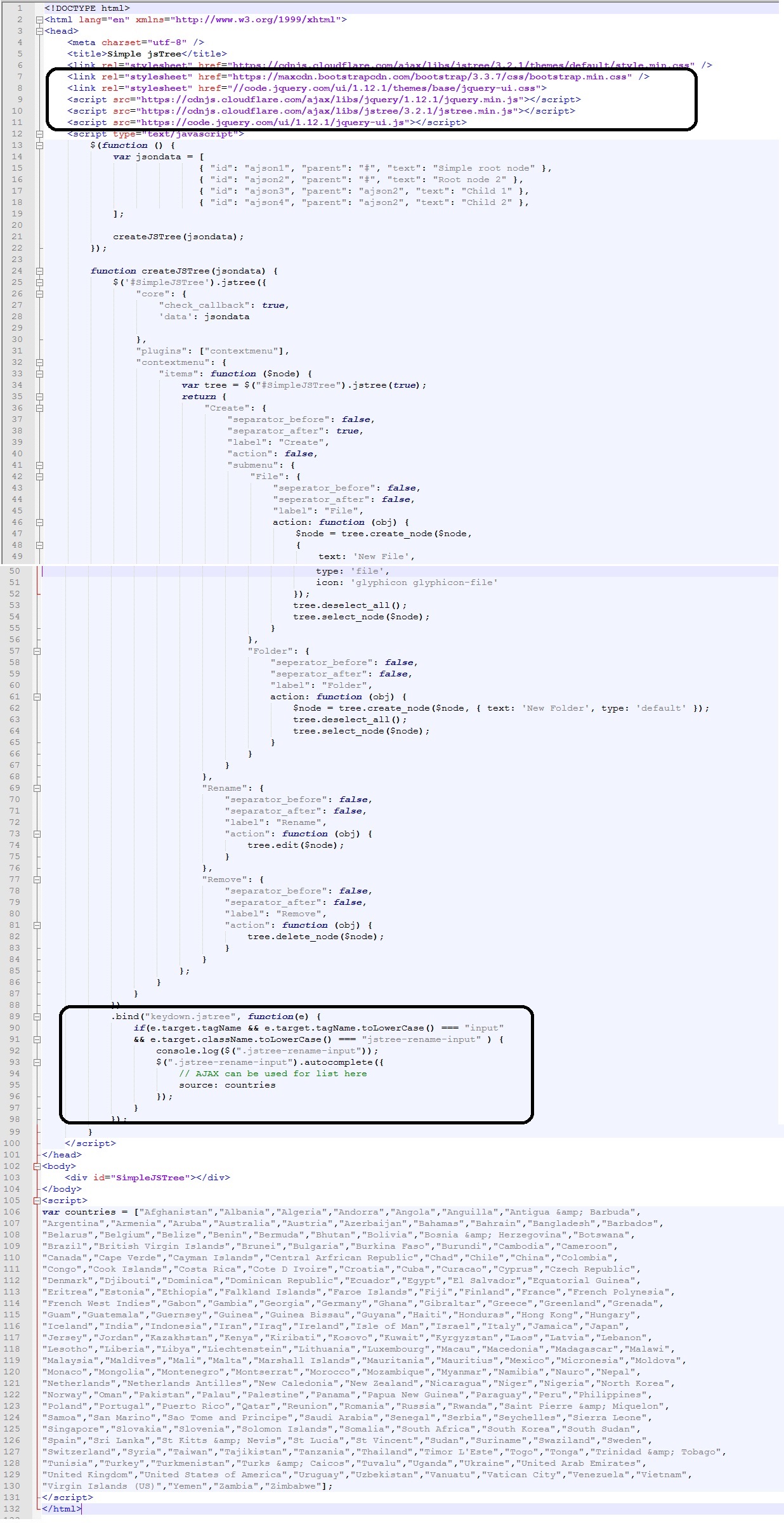

jsTree with autocomplete box code

Code file is below, so that you copy it and can be tested.


<!DOCTYPE html>
<html lang="en" xmlns="http://www.w3.org/1999/xhtml">
<head>
    <meta charset="utf-8" />
    <title>Simple jsTree</title>
    <link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/jstree/3.2.1/themes/default/style.min.css" />
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css" />
    <link rel="stylesheet" href="//code.jquery.com/ui/1.12.1/themes/base/jquery-ui.css">
    <script src="https://cdnjs.cloudflare.com/ajax/libs/jquery/1.12.1/jquery.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/jstree/3.2.1/jstree.min.js"></script>
    <script src="https://code.jquery.com/ui/1.12.1/jquery-ui.js"></script>
    <script type="text/javascript">
        $(function () {
            var jsondata = [
                           { "id": "ajson1", "parent": "#", "text": "Simple root node" },
                           { "id": "ajson2", "parent": "#", "text": "Root node 2" },
                           { "id": "ajson3", "parent": "ajson2", "text": "Child 1" },
                           { "id": "ajson4", "parent": "ajson2", "text": "Child 2" },
            ];

            createJSTree(jsondata);
        });

        function createJSTree(jsondata) {
            $('#SimpleJSTree').jstree({
                "core": {
                    "check_callback": true,
                    'data': jsondata

                },
                "plugins": ["contextmenu"],
                "contextmenu": {
                    "items": function ($node) {
                        var tree = $("#SimpleJSTree").jstree(true);
                        return {
                            "Create": {
                                "separator_before": false,
                                "separator_after": true,
                                "label": "Create",
                                "action": false,
                                "submenu": {
                                    "File": {
                                        "seperator_before": false,
                                        "seperator_after": false,
                                        "label": "File",
                                        action: function (obj) {
                                            $node = tree.create_node($node,
							{
                                                           text: 'New File',
							   type: 'file',
							   icon: 'glyphicon glyphicon-file'
							});
                                            tree.deselect_all();
                                            tree.select_node($node);
                                        }
                                    },
                                    "Folder": {
                                        "seperator_before": false,
                                        "seperator_after": false,
                                        "label": "Folder",
                                        action: function (obj) {
                                            $node = tree.create_node($node, { text: 'New Folder', type: 'default' });
                                            tree.deselect_all();
                                            tree.select_node($node);
                                        }
                                    }
                                }
                            },
                            "Rename": {
                                "separator_before": false,
                                "separator_after": false,
                                "label": "Rename",
                                "action": function (obj) {
                                    tree.edit($node);
                                }
                            },
                            "Remove": {
                                "separator_before": false,
                                "separator_after": false,
                                "label": "Remove",
                                "action": function (obj) {
                                    tree.delete_node($node);
                                }
                            }
                        };
                    }
                }
            })
			.bind("keydown.jstree", function(e) {
				if(e.target.tagName && e.target.tagName.toLowerCase() === "input" && e.target.className.toLowerCase() === "jstree-rename-input" ) {
					console.log($(".jstree-rename-input"));
					$(".jstree-rename-input").autocomplete({
						// AJAX can be used for list here
						source: countries
					});
				}
			});
        }
    </script>
</head>
<body>
    <div id="SimpleJSTree"></div>
</body>
<script>
var countries = ["Afghanistan","Albania","Algeria","Andorra","Angola","Anguilla","Antigua &amp; Barbuda","Argentina","Armenia","Aruba","Australia","Austria","Azerbaijan","Bahamas","Bahrain","Bangladesh","Barbados","Belarus","Belgium","Belize","Benin","Bermuda","Bhutan","Bolivia","Bosnia &amp; Herzegovina","Botswana","Brazil","British Virgin Islands","Brunei","Bulgaria","Burkina Faso","Burundi","Cambodia","Cameroon","Canada","Cape Verde","Cayman Islands","Central Arfrican Republic","Chad","Chile","China","Colombia","Congo","Cook Islands","Costa Rica","Cote D Ivoire","Croatia","Cuba","Curacao","Cyprus","Czech Republic","Denmark","Djibouti","Dominica","Dominican Republic","Ecuador","Egypt","El Salvador","Equatorial Guinea","Eritrea","Estonia","Ethiopia","Falkland Islands","Faroe Islands","Fiji","Finland","France","French Polynesia","French West Indies","Gabon","Gambia","Georgia","Germany","Ghana","Gibraltar","Greece","Greenland","Grenada","Guam","Guatemala","Guernsey","Guinea","Guinea Bissau","Guyana","Haiti","Honduras","Hong Kong","Hungary","Iceland","India","Indonesia","Iran","Iraq","Ireland","Isle of Man","Israel","Italy","Jamaica","Japan","Jersey","Jordan","Kazakhstan","Kenya","Kiribati","Kosovo","Kuwait","Kyrgyzstan","Laos","Latvia","Lebanon","Lesotho","Liberia","Libya","Liechtenstein","Lithuania","Luxembourg","Macau","Macedonia","Madagascar","Malawi","Malaysia","Maldives","Mali","Malta","Marshall Islands","Mauritania","Mauritius","Mexico","Micronesia","Moldova","Monaco","Mongolia","Montenegro","Montserrat","Morocco","Mozambique","Myanmar","Namibia","Nauro","Nepal","Netherlands","Netherlands Antilles","New Caledonia","New Zealand","Nicaragua","Niger","Nigeria","North Korea","Norway","Oman","Pakistan","Palau","Palestine","Panama","Papua New Guinea","Paraguay","Peru","Philippines","Poland","Portugal","Puerto Rico","Qatar","Reunion","Romania","Russia","Rwanda","Saint Pierre &amp; Miquelon","Samoa","San Marino","Sao Tome and Principe","Saudi Arabia","Senegal","Serbia","Seychelles","Sierra Leone","Singapore","Slovakia","Slovenia","Solomon Islands","Somalia","South Africa","South Korea","South Sudan","Spain","Sri Lanka","St Kitts &amp; Nevis","St Lucia","St Vincent","Sudan","Suriname","Swaziland","Sweden","Switzerland","Syria","Taiwan","Tajikistan","Tanzania","Thailand","Timor L'Este","Togo","Tonga","Trinidad &amp; Tobago","Tunisia","Turkey","Turkmenistan","Turks &amp; Caicos","Tuvalu","Uganda","Ukraine","United Arab Emirates","United Kingdom","United States of America","Uruguay","Uzbekistan","Vanuatu","Vatican City","Venezuela","Vietnam","Virgin Islands (US)","Yemen","Zambia","Zimbabwe"];
</script>
</html>

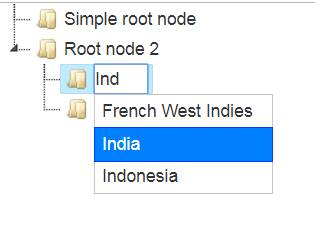

The outcome will be like below
jsTree with autocomplete box
